Case Sealer Machine

Case Erectors and Sealers erect and seal a wide variety of case styles and sizes, sealing top and/or bottom case flaps.

Massman Automation incorporates its proven case handling and sealing technologies (hot melt adhesive or tape) into a standalone machine allowing for case erecting or case sealing applications that do not require an all-in-one type automated case packing system.

Massman Automation case erectors and case sealers are designed with safety, durability, productivity and efficiency as the top design criteria. In addition, the case erectors and case sealers include all the features found in the standard Massman Automation case packer. The case erector and case sealer are designed to your specifications. These heavy-duty machines are built to be dependable under multi-shift conditions. With Massman Automation’s in-house technical expertise in the design and programming of this equipment, you can be assured of years of efficient productivity and low-cost ownership.

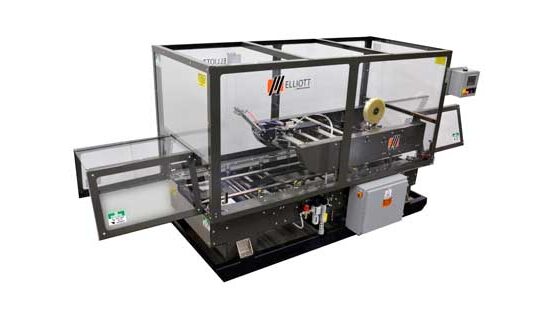

Elliott MS-30T Case Sealer Machine

The Elliott MS-30T Case Sealer is a compact machine for sealing a wide range of cases in a limited space. It is quickly adjustable for changing case sizes and operates at speeds up to 30 cases/minute. The taping machine is built with a single unitized machine frame, has a No Case No Kick rear flap tucker, and transfer system that insures a square case every time.

GET A QUOTE ON AN ELLIOTT MS-30T CASE SEALER MACHINE

Learn More

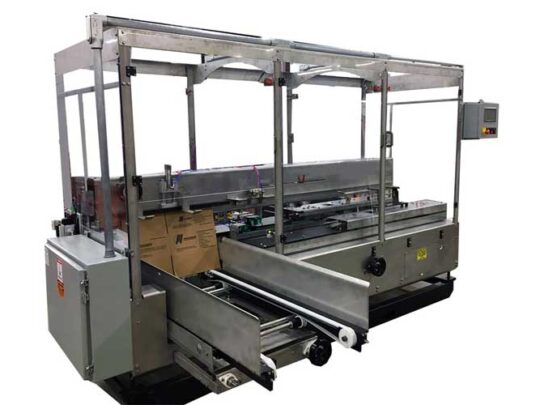

Elliott ME-30T Tape Case Erector

The Massman – Elliott ME-30T tape case erector is constructed with a full, 3” tubular, powder-coated steel frame and is fully enclosed with Lexan interlocked access doors controlled by a CAT 3 safety system. PLC and HMI are Allen-Bradley. Cases are picked using opposing vacuum cups that allow for the worst case scenario case blank conditions. Case squaring is accomplished using continuous contact tabbed belts moving the erected case through the system in an “open top up” orientation. A 3M tape head is standard with options for other manufacturers. Speeds up to 35 CPM have been proven dependent on case width and length.

GET A QUOTE ON A TAPE CASE ERECTOR

Learn More

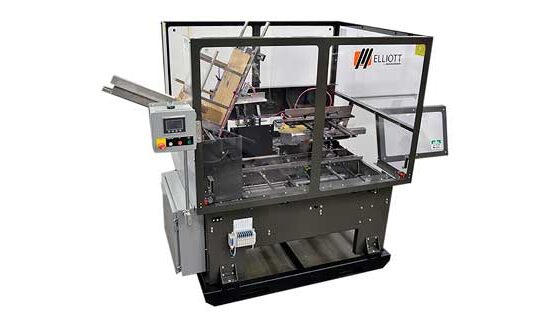

Elliott ME 15-T Tape Case Erector

The Massman – Elliott ME 15-T  tape case erector is a small footprint erector operating at speeds up to 15 Cases/Minute. Superior case squaring, fully guarded interlock access doors, robust construction, CAT 3 safety and service behind the sale are just a few benefits of this machine.

GET A QUOTE ON AN ELLIOTT ME 15-T TAPE CASE ERECTOR

Learn More

HMT-Mini Case Sealer Machine

This new sealer incorporates an innovative modular construction that allows specific features of the sealer to be changed out, enabling users to meet growing production demands by replacing modules rather than by investing in a new sealer. This modularity can also facilitate future sealer design changes and is a major factor in reducing production lead times for the HMT-Mini by 50%.

See a video on the HMT Mini at Packaging World magazine

GET A QUOTE ON A CASE SEALER MACHINE

Learn More

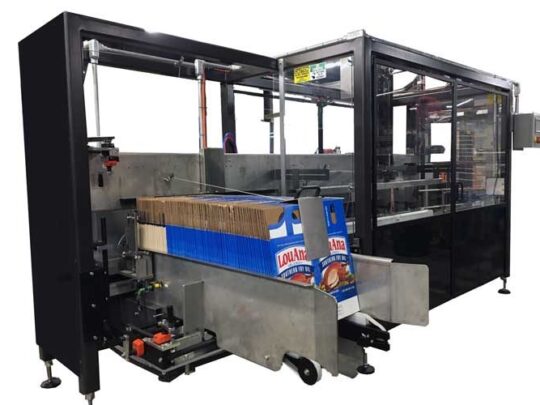

EV 350 (ME 25-G) Case Erector

The unique design of the EV 350 enables it to handle cases up to 35 cpm with continuous control of the case.  Size changeover requires less than five (5) minutes with automatic changeover available.  A large case size range and small footprint with an open design for ease of access and scheduled preventive maintenance.  The magazine is ergonomically friendly for your operators and handles a wide range of corrugated quality; it is easily convertible to automatic loading of your KD cases.  The use of new materials available makes the frame of the EV 350 light, durable and very portable.

GET A QUOTE ON A EV 350 CASE ERECTOR

Learn More

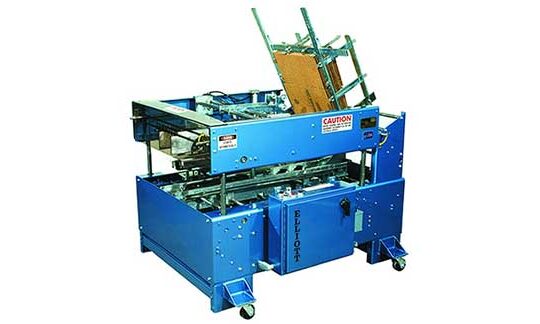

Elliott Model 93SFIL Automatic Case Erector (ME – 10G & 15T)

The Elliott Model 93SFIL Automatic Case Erector either tapes or glues the bottom of the case. The 93SFIL is a compact machine for erecting and sealing a wide range of case sizes in a limit space. It is portable and quickly adjustable for changing case sizes. The erector is built within a single unitized machine frame. Squared cases are assured by case transfer system.

GET A QUOTE ON AN AUTOMATIC CASE ERECTOR

Learn More

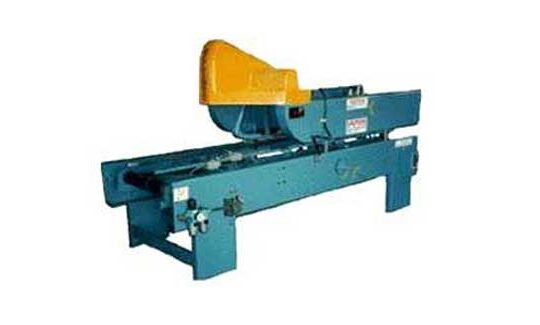

Elliott 85-AT Automatic Case Taper

The Elliott 85-AT Automatic Case Taper is a compact machine for sealing a wide range of cases in a limited space. It is quickly adjustable for changing case sizes. The taping machine is built with a single unitized machine frame, has a No Case No Kick rear flap tucker, and transfer system that insures a square case every time.

Request a Quote

Learn More

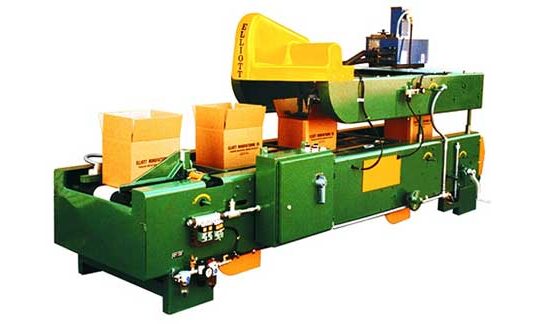

Elliott Model 76-10 Fully Automatic Hot Melt Case Sealer

The Elliott Model 76-10 Fully Automatic Hot Melt Case Sealer is a compact machine for sealing a wide range of case sizes in limited space. It is quickly adjustable for case size changes. The Model 76-10 is built with a single unitized machine frame and has a transfer system that ensures a square case every time.

GET A QUOTE ON A FULLY AUTOMATIC HOT MELT CASE SEALER

Learn More

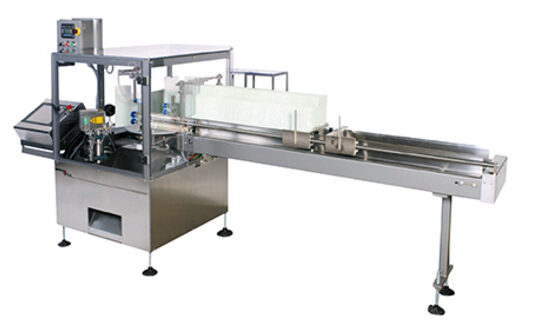

PSA VCE Rotary Vertical Carton Erector

The Massman PSA VCE Rotary Vertical Carton Erector offers a carton erecting solution for Auto-Bottom types of cartons.

The VCE offers many standard features such as a rotary head timing belt drive for low maintenance, heavy duty aluminum support plates, capable of speeds up to 100 ppm (product dependent), 48” power-fed magazine, variable speed drive, PIAB vacuum generator, and touch screen controls. All these standard features with a quick changeover capability.

GET A QUOTE ON A VERTICAL CARTON ERECTOR

Learn More

Case Erecting and Sealing Automation

Automated case erecting and sealing machines offer an efficient and reliable method for your end-of-the-line packaging process. These machines are responsible for taking flat cardstock, cardboard, or paperboard and folding them into the appropriate box shape for your product. After erecting the boxes, our machines then seal the box using techniques such as heat sealing, hot glue, polypropylene, and more. Some automated case sealing machines use interlocking paper to seal packages and protect products.

When you invest in an automated erecting or sealing machine, it will quickly pay for itself in increased productivity. We build our Massman automation erecting and sealing machines with the highest standards of productivity, efficiency, and durability in the industry. Our equipment is guaranteed to last for years to come.

Machinery for Case Erecting and Sealing

While many packaging machines fulfill multiple purposes, it’s important to understand the difference between each end-of-the-line machine. Here’s a deeper dive into our range of end-of-the-line case machinery:

  • Erectors: Case erectors turn your paperboard or cardboard stock into fully formed boxes that are open and ready to protect your package. Massman produces several erectors, including the ME 30-T, the ME 15-T, the EV 350 (ME 25-G), the 93 SFIL, and the VCE Rotary Vertical Carton.
  • Sealers: Massman produces sealers that are versatile enough to seal a wide range of cases with a small footprint. We offer the ME 30-T case sealer as well as the HMT-Mini Case Sealer.
  • Automatic hot melt case sealer: The Massman Eliott Model 76-10 Fully Automatic Hot Melt Case Sealer is a compact sealing machine that you can easily adjust and optimize to fit a range of case sizes. Our case taper features an automatic case feed indexer with quick-change crank adjustments and engraved plates for control valves and switches.
  • Automatic case taper: The Massman 85-AT Automatic Case Taper allows for top and bottom case sealing with quick-change crank adjustments. Our hot melt case sealers provide your manufacturing process with more than 25 years of operation, regardless of the environment.

The Benefits of Semi-Automatic Case Sealers

Investing in a case erecting or sealing machine increases the ROI of your packaging process in several ways, including:

  • Increased productivity: When you automate your packaging process, you’ll create a more efficient and productive assembly line while decreasing labor costs. Your employees will have time to focus on other critical aspects of your process.
  • Save space: Automated case erecting and sealing machines are more space-efficient than alternative methods. Many machines are versatile enough to accommodate multiple package sizes.
  • Low maintenance: Massman automation machines are low-maintenance pieces of equipment that are meant to last. We build our line of case erecting and sealing equipment to last for at least 25 years with minimal maintenance and interference.

Read: Massman Automation Acquires Elliott Manufacturing

Interested in Packing Automation From Massman?

At Massman Automation, we’ve spent more than 40 years perfecting our automation solutions. We’re certain that our team can create the custom end-of-the-line solutions you need. Interested in working with us? Request a consultation today or give us a call at (320) 554-3611.
