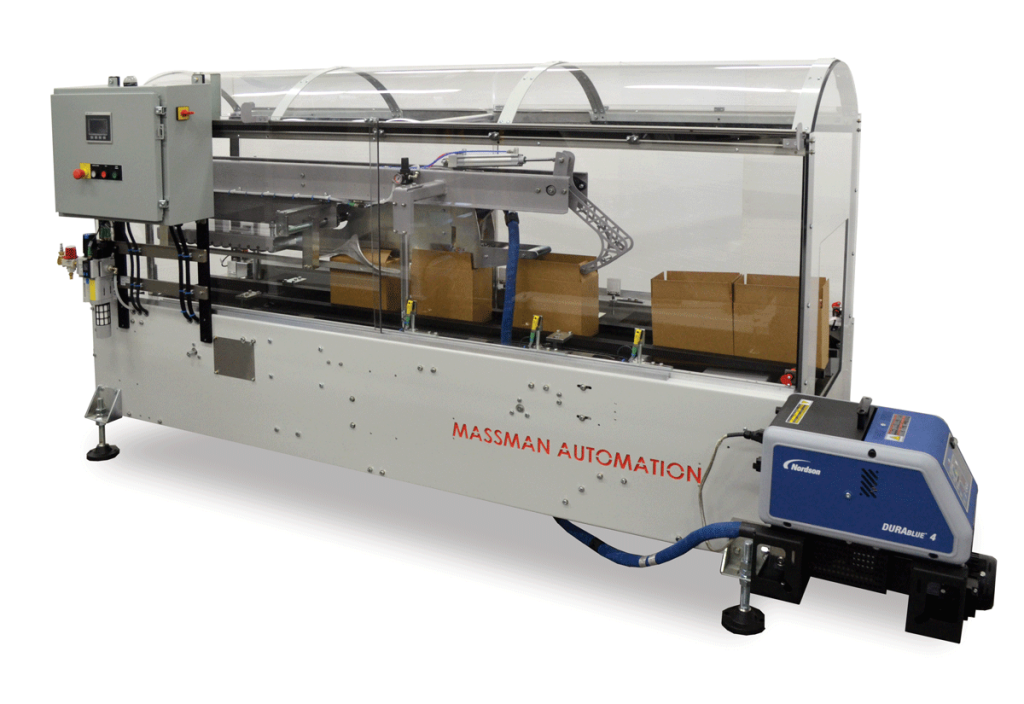

HMT-Mini Case Sealer Machine

This new sealer incorporates an innovative modular construction that allows specific features of the sealer to be changed out, enabling users to meet growing production demands by replacing modules rather than by investing in a new sealer. This modularity can also facilitate future sealer design changes and is a major factor in reducing production lead times for the HMT-Mini by 50%.

See a video on the HMT Mini at Packaging World magazine

GET A QUOTE ON A CASE SEALER MACHINE

Features

  • Top Case Sealing (Hot Melt Glue)
  • Automatic Case Feed Indexer
  • Quick Change Crank Adjustments
  • Engraved Legend Plates for Switches and Control Valves
  • No Case / No Tuck Automatic Rear Flap Tucker
  • Bolt-on Safety Guards
  • Heavy Duty Construction
  • Over 30 Years of Reliable Operation in All Types of Environments
  • High Speed Case Sealer
  • Fully Enclosed with Interlocked Lexan Door Access

Options

  • Parameter Guard Package
  • PLC Controller
  • Store and Change Glue Patterns Using a PLC and HMI
  • U.L. Labeled Electrical Panel
  • Step Down Transformer for Hot Melt (230V)

Specifications

Operating Speeds: Up to 1500 Cases Per Hour (25 Cases Per Minute) Standard Construction*

Up to 3000 Cases Per Hour (50 Cases Per Minute) Extended Construction*

Case Size Range: Length:  8″ to 18″
Width:    6″ to 16″
Depth:    6″ to 16″
Machine Dimensions: Length:  110″ (9′ 2″)
Width:  36″
In-feedHeight:  24″
Electrical: 460 or 230 Volts Standard (other voltages available)
3 Phase, 60 Hz
NEMA Type 12 Enclosures

Resources

Sizes

HMT-MINI Case Size Range
SET UP: MINIMUM: MAXIMUM:
LENGTH 8″ (20.32cm) 18″ (45.72cm)
WIDTH 6″ (15.24cm) 16″ (40.64cm)
DEPTH 3″ (7.62cm) 16″ (40.64cm)

Contact Us for a Quote on this Machine

Massman Automation Designs is proud to introduce the HMT-Mini top only case sealer designed to use either glue or tape at speeds of up to 1,500 cases/hr. It seals standard cases up to 18 in. long, 16 in. wide, and 16 in. deep.

An optional, more advanced sealer incorporating extended compression can seal at rates of up to 3,000 cases/hr.

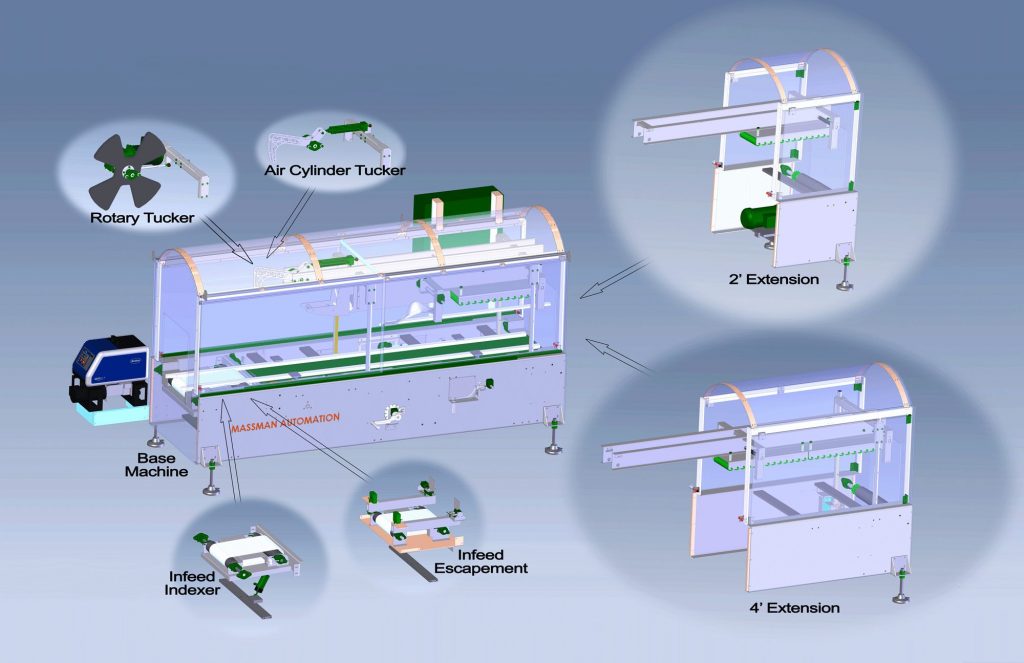

This new sealer incorporates an innovative modular construction that allows specific features of the sealer to be changed out, enabling users to meet growing production demands by replacing modules rather than by investing in a new sealer. This modularity can also facilitate future sealer design changes and is a major factor in reducing production lead times for the HMT-Mini by 50%.

The fully-automatic sealer features robust, heavy-duty construction, speedy changeover to new case sizes and is completely enclosed. The system’s transparent enclosure offers increased visibility of the operation, and interlocked Lexan access doors on either side of the enclosure give greater access to the machinery without sacrificing safety.

The modularization of the comp, tucking and metering functions of the system enable them to be changed to allow sealing of larger cases. The sealer has a compact footprint measuring 110 in. in length and 36 in. in width. It has an infeed height of 24 in. and can include either a drop gate or metered automatic infeed.
