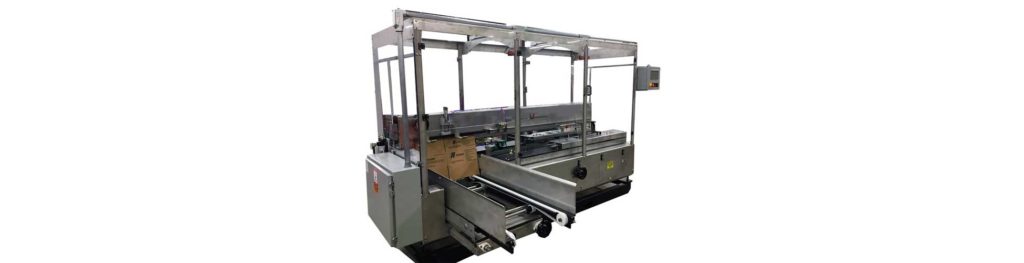

Elliott ME-30T Tape Case Erector

The Massman – Elliott ME-30T tape case erector is constructed with a full, 3” tubular, powder-coated steel frame and is fully enclosed with Lexan interlocked access doors controlled by a CAT 3 safety system. PLC and HMI are Allen-Bradley. Cases are picked using opposing vacuum cups that allow for the worst case scenario case blank conditions. Case squaring is accomplished using continuous contact tabbed belts moving the erected case through the system in an “open top up” orientation. A 3M tape head is standard with options for other manufacturers. Speeds up to 35 CPM have been proven dependent on case width and length.



Feature Specification Additional Options
Up to 30 Cases per Minute-Standard Electrical-460/230 3 Phase Right or Left Hand Machine
* Please note these rates can vary depending on the style
and size of the case
Tape 20 AMP/ Hot Melt 30 AMP Out of Standard Range Case Sizes
Standard Case Range NEMA 12 Standard Full Overlap Cases
Length 6” to 18” Weight Approximately 2,000 Lbs. Square and Taller than Long Cases
Width 6” to 16” Powder Coated Frame Stainless Steel Components
Depth 6” to 16” NEMA 4 Electrics
High Speed Case Erector Extended Blank Magazine
Positive Case Squaring
Top Up Case Configuration
Fully Enclosed with Lexan Door Access
Category 3 Safety
5 Minute or Less Tool Free Changeover
