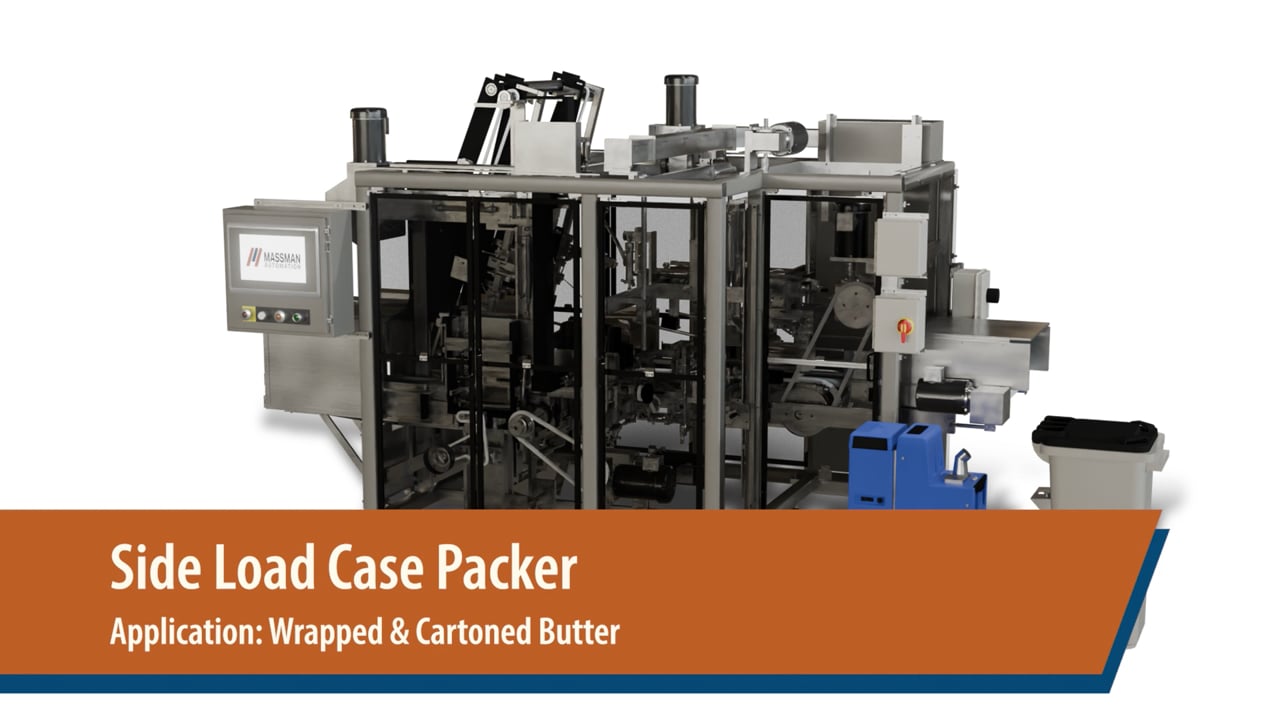

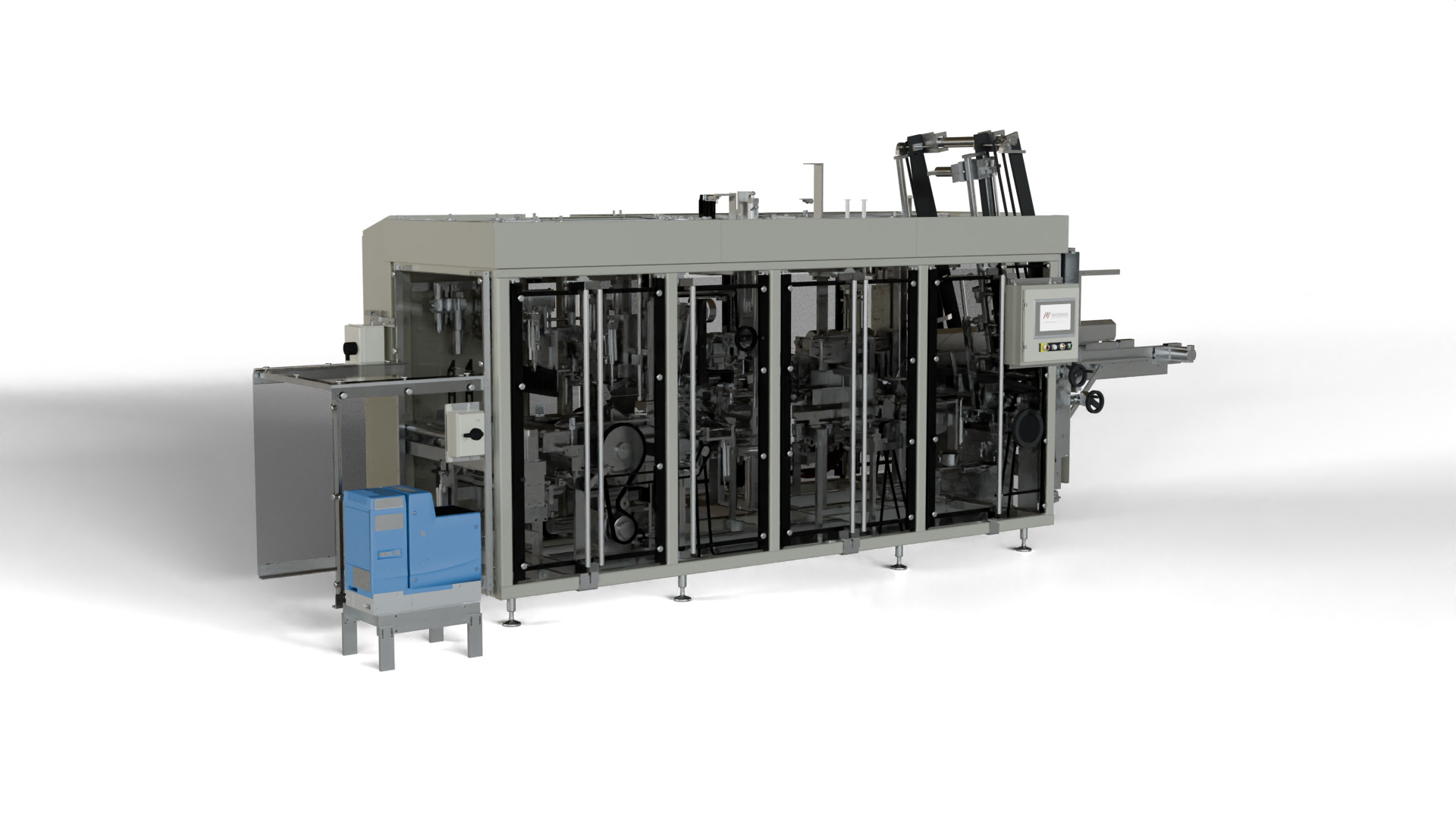

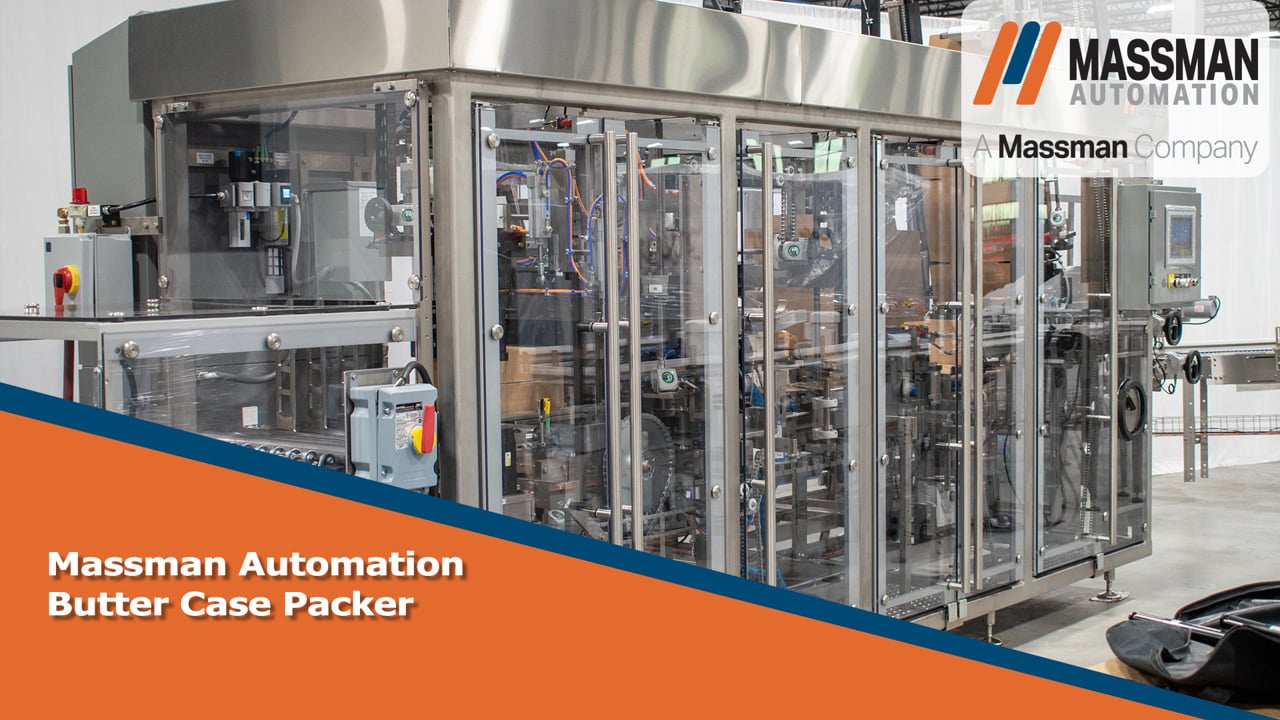

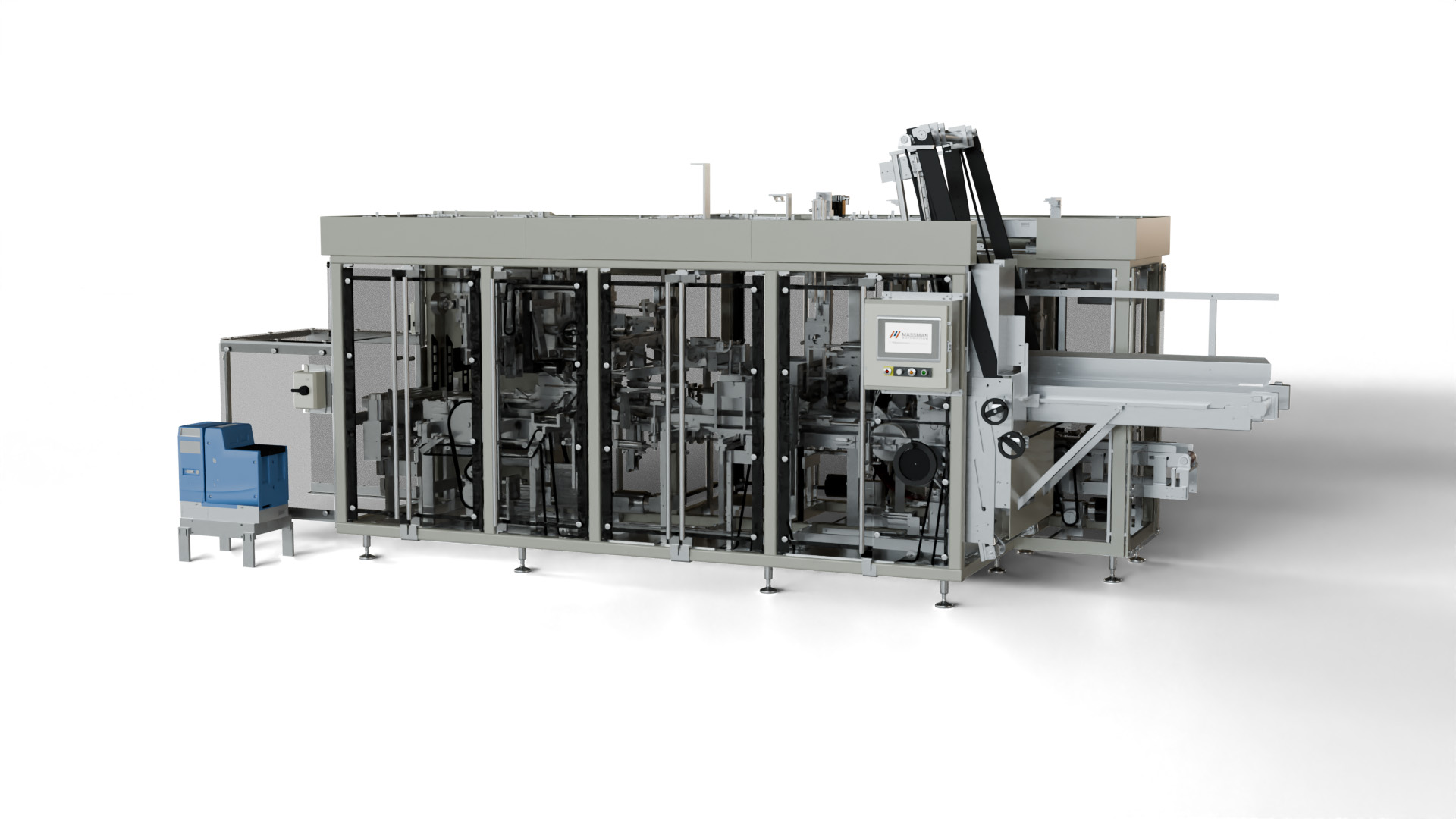

Elgin or Western Butter Case Packer

Overview

The Butter Case Packer for Elgin or Western Style pounds of butter was designed with extreme durability in mind. Capable of running 24 hours a day, 7 days a week this Case Packer helps the customer meet all of thier production needs.

Specifications

Specifications	Standard Option	Additional Option
Case Blank Capabilities	Knock Down, Harness & Tray	Wrap Around
Infeed Options	Infeed Conveyor with Bump Up Stacker	Infeed Zoning Conveyor
Product Loading	Frequency Drive	Servo Driven
Magazine	3’ Power-Feed Magazine	6’ Power-Feed Magazine
Glue System	NORDSON ProBlue® 10	Nordson Liberty System
Guard Doors	Aluminum Extruded Frame with 1/4” clear or dark acrylic panels	Stainless Steel Mesh Panels
Frame	6” Floor Clearance 300 Series Stainless Steel With No Penetrations	12” Floor Clearance
Frame Finish	Bead Blast
Electrical	Allen Bradley Panel View 700 HMI with ethernet capabilities Allen Bradley Kinetic 5500 servo motors and drives Allen Bradley Compact Logix PLC with ethernet capabilities Allen Bradley guard door switches (interlock doors) Bosch Indramat servo motors and drives Allen Bradley 855 3-color light stack with an audible alarm NEMA 4x electrical enclosure with external power receptacle and computer port NEMA 4X perimeter wire-way Category III safety circuit 480 VAC, 3ø, 60 Hz IP 67 rated sensors	Allen Bradley PV 1000+ ethernet capabilities Allen Bradley control logix PLC with ethernet capabilities Allen Bradley Kinetic 6000 servo motors and drives 240 VAC, 3ø, 60 Hz UL Certifi cation
Pneumatics	Venturi vacuum generators Festo valves and cylinders Parker fittings	Centralized enclosure for valves
Adjustments	Digital indicator with handwheels	Siko digital readouts Power adjustment for movements over 12”

Advantages

• Capable of speeds up to 90 pounds per minute
• Full washdown construction
• Minimize downtime with machine reliability
• Cost effective designed to support demanding ROI applications

Butter Case Packer Information Sheet

Pack Patterns
