Manual Cartridge Assembly Machinery – MCAM

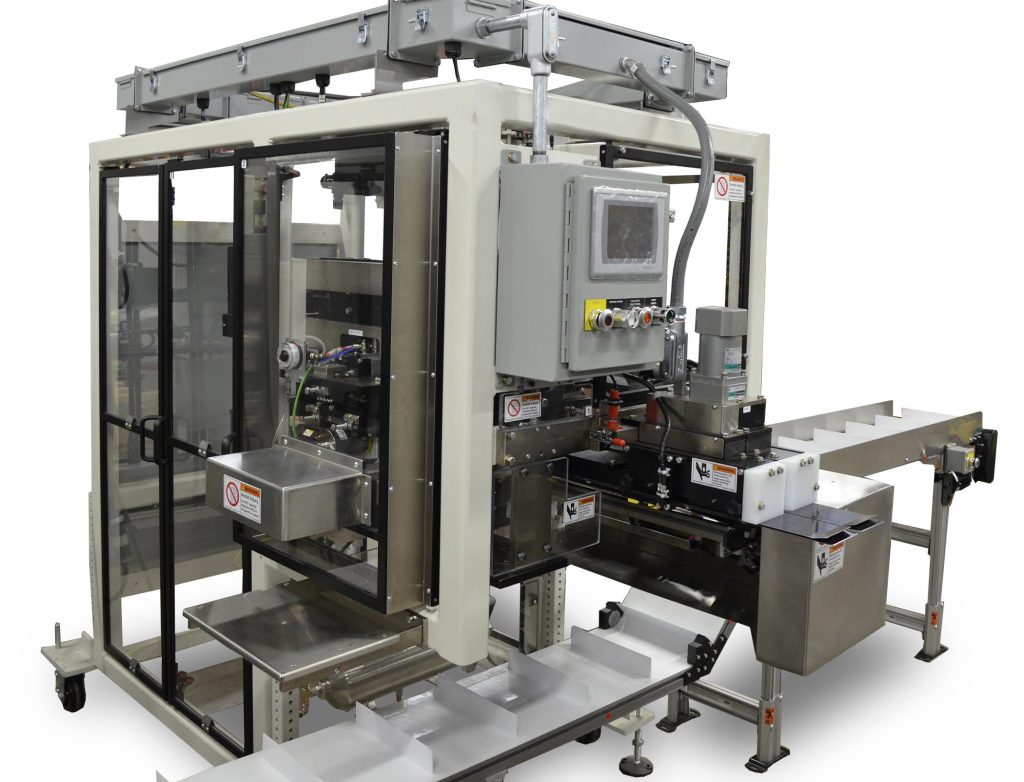

The Massman MCAM-1300 is a semi-automatic, manual load, pleated media first and the last pleat seaming machine. It seams cellulose, synthetic or wire back media slit widths up to 13-inches (330mm), pleat heights greater than 1.5-inches (38mm) upon request, and media thickness greater than 0.125-inches (3.2mm). This is PLC controlled with HMI interfaced servos for automatic changeover adjustments within 20-seconds. The cycle speed is operator-dependent up to 30ppm.

GET A QUOTE ON A MANUAL CARTRIDGE ASSEMBLY MACHINE

Extended Manual Cartridge Assembly Machinery

Available Models

MCAM – Series U Ultrasonic Weld – Seamer
MCAM – Series C Metal Clipper
MCAM – Series H Hot Melt Adhesive – Seamer

Features

Seams single and multi-layer media, cellulose, synthetic and wire back material
For water, air, oil, alcohol and fuel filtration, as well as medical applications
World class manufacturing built to your country’s build standards
Each part is stamped with a unique part number and then painted, plated or anodized
24-hour phone support
Dedicated spare parts department
After sale onsite service

Resources

See the sales literature below to determine which model is right for your application.

Manual Cartridge Assembly Machinery: MCAM Series
